Example notebook to compute eccentricity \(e_{\xi}(t)\) from waveforms

This framework is developed by Islam and Venumadhav available at https://arxiv.org/abs/2502.02739

Characterizing eccentricity in gravitational waveforms in a consistent manner is crucial to facilitate parameter estimation, astrophysical population studies, as well as searches for these rare systems. We present a framework to characterize eccentricity directly from gravitational waveforms for non-precessing eccentric binary black hole (BBH) mergers using common modulations that eccentricity induces in all spherical harmonic modes of the signals. Our framework is in the spirit of existing methods that use frequency modulations in the waveforms, but we refine the approach by connecting it to state-of-the-art post-Newtonian calculations of the time evolution of the eccentricity. Using 39 numerical relativity (NR) simulations from the SXS and RIT catalogs, as well as waveforms obtained from the post-Newtonian approximation and effective-one-body (EOB) formalism, we show that our framework provides eccentricity estimates that connect smoothly into the relativistic regime (even up to \(\sim 2M\) before merger). We also find that it is necessary to carry existing post-Newtonian calculations to an extra \(0.5\)PN order to adequately characterize existing NR simulations, and provide fits to the extra coefficient for existing simulations. We make the framework publicly available through the Python-based \texttt{gwModels} package.

import sys
# install gwModels in editable mode from the parent directory
!{sys.executable} -m pip install -e ../ --no-deps --quiet

import matplotlib.pyplot as plt
import numpy as np
import warnings
warnings.filterwarnings("ignore", "Wswiglal-redir-stdio")

import gwModels
gwModels.utils.set_rcparams()

lal.MSUN_SI != Msun

1. Load waveforms

# load eccentric NR data from SXS:BBH:1355 and circular NR data from SXS:BBH:0180
wfs = np.load('../gwModels/data/SXSBBH1355.npy', allow_pickle=True)[()]

t_ecc = wfs['t_ecc']
hecc_dict = wfs['hecc_dict']
t_cir = wfs['t_cir']
hcir_dict = wfs['hcir_dict']

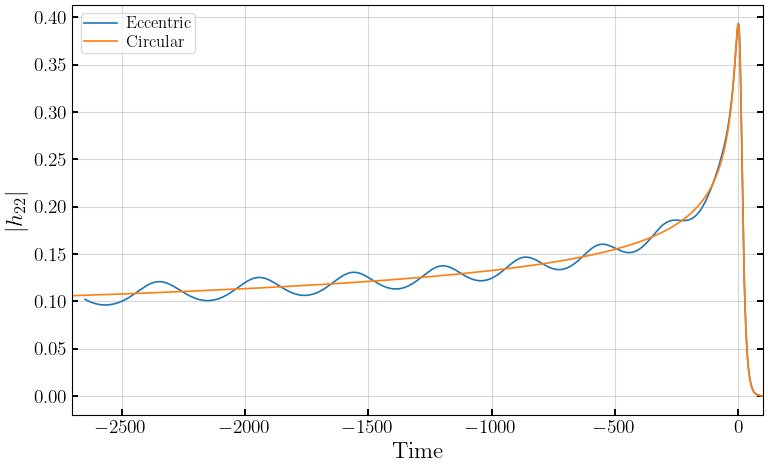

# plot them
plt.figure(figsize=(8,5))
plt.plot(t_ecc, abs(hecc_dict['h_l2m2']), label='Eccentric')
plt.plot(t_cir, abs(hcir_dict['h_l2m2']), label='Circular')
plt.xlim(-2700,100)
plt.xlabel('Time')
plt.ylabel('$|h_{22}|$')
plt.legend()
plt.tight_layout()
plt.show()

2. Compute eccentricity \(e_{\xi}\)

help(gwModels.ecc_measures.ComputeEccentricity)

Help on class ComputeEccentricity in module gwModels.ecc_measures.compute_ecc_xi:

class ComputeEccentricity(builtins.object)
 |  ComputeEccentricity(t_ecc=None, h_ecc_dict=None, t_cir=None, h_cir_dict=None, q=None, t_ref=None, ecc_prefactor=None, distance_btw_peaks=None, fit_funcs_orders=None, include_zero_zero=False, set_unphysical_xi_to_zero=False, set_unphysical_ecc_to_zero=True, method='xi_amp', use_xi_amp_to_get_xi_freq=False, tc=0, t_buffer=0)
 |
 |  Class to compute eccentricity using 22 mode eccentric and circular waveforms.
 |
 |  This is a convenience wrapper that:
 |  1. Computes modulations via NRHME
 |  2. Delegates eccentricity extraction to ComputeEccentricityFromModulations
 |
 |  Methods defined here:
 |
 |  __getattr__(self, name)
 |      Delegate attribute access to the inner ComputeEccentricityFromModulations object.
 |
 |  __init__(self, t_ecc=None, h_ecc_dict=None, t_cir=None, h_cir_dict=None, q=None, t_ref=None, ecc_prefactor=None, distance_btw_peaks=None, fit_funcs_orders=None, include_zero_zero=False, set_unphysical_xi_to_zero=False, set_unphysical_ecc_to_zero=True, method='xi_amp', use_xi_amp_to_get_xi_freq=False, tc=0, t_buffer=0)
 |      Parameters:
 |          t_ecc: time array for the eccentric 22 mode waveform
 |          h_ecc_dict: dictionary of eccentric waveform modes (should contain 22 mode)
 |          t_cir: time array for the circular waveform modes
 |          h_cir_dict: dictionary of circular non-spinning waveform modes
 |          q: mass ratio (q>=1)
 |          t_ref: reference time to compute eccentricity
 |          ecc_prefactor: pre-factor in eccentricity definition; default is 2/3
 |          distance_btw_peaks: distance between peaks for PeakFinderScipy
 |          fit_funcs_orders: orders of the upper and lower xi fit functions
 |          include_zero_zero: if True, include (t=0, y=0) to extrema lists
 |          set_unphysical_xi_to_zero: if True, set negative/NaN in fitted xi to zero
 |          set_unphysical_ecc_to_zero: if True, set negative/NaN in fitted eccentricity to zero
 |          method: 'xi_amp' or 'xi_freq'
 |          use_xi_amp_to_get_xi_freq: if True, compute freq modulation from amp modulation
 |          tc: time at merger; default is zero
 |          t_buffer: buffer time for common time grid
 |
 |  ----------------------------------------------------------------------
 |  Data descriptors defined here:
 |
 |  __dict__
 |      dictionary for instance variables (if defined)
 |
 |  __weakref__
 |      list of weak references to the object (if defined)

# compute eccentricity
obj = gwModels.ecc_measures.ComputeEccentricity(t_ecc = t_ecc,
                                                h_ecc_dict = {'h_l2m2': hecc_dict['h_l2m2']},
                                                t_cir = t_cir,
                                                h_cir_dict = {'h_l2m2': hcir_dict['h_l2m2']},
                                                q=1,
                                                distance_btw_peaks=2000, # choice for the distance between peak
                                                fit_funcs_orders=['3PN_m1over8', '3PN_m1over8'], # default choices for the fit orders using PN+pseudo PN expressions
                                                ecc_prefactor=2/3) # default choice for the Newtonian limit

... gwModels eccentricity at t_ref=-2638.56 : 0.07996

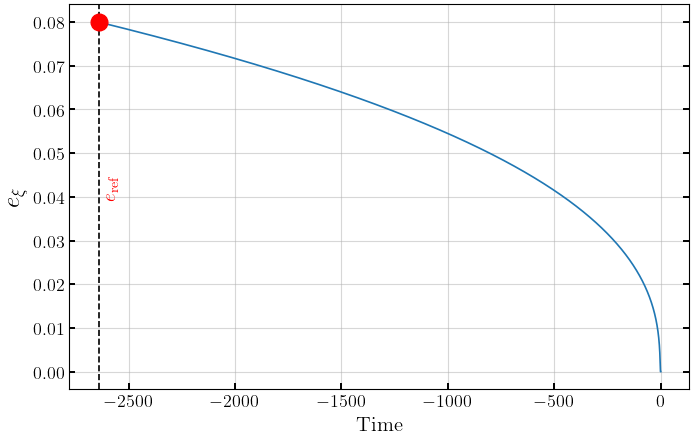

obj.plot_eccentricity()

3. Compare with gw-eccentricity package

For this part to run, you need to install the gw-eccentricity package:

pip install gw-eccentricity

import gwtools
# You need to have gw-eccentricity package from https://github.com/vijayvarma392/gw_eccentricity
from gw_eccentricity import measure_eccentricity
from gw_eccentricity import get_available_methods

# Setup dataDict (Note the required format)
t_common = np.linspace(min(obj.time_xi), 100, 10000)

# Setup dataDict (Note the required format)
dataDict = {"t": t_common,
           "hlm": {(2, 2): gwtools.interpolate_h(t_ecc, hecc_dict['h_l2m2'], t_common)},
           "t_zeroecc": t_common,
           "hlm_zeroecc": {(2, 2): gwtools.interpolate_h(t_cir, hcir_dict['h_l2m2'], t_common)}}

tref_in = -2350
return_dict = measure_eccentricity(tref_in=tref_in,
                                   method='ResidualAmplitude',
                                   dataDict=dataDict)
gwecc_object = return_dict["gwecc_object"]

>>> Warning: Requested samples are outside of interpolated domain.

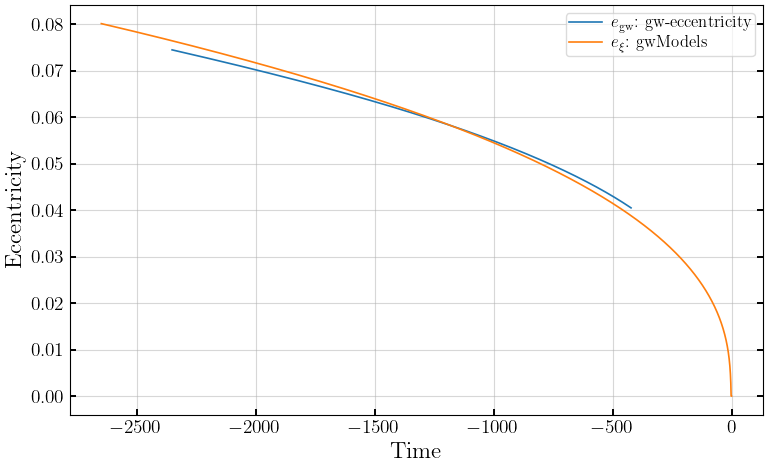

# comparison
plt.figure(figsize=(8,5))
plt.plot(gwecc_object.t_for_checks, gwecc_object.ecc_for_checks, label='$e_{\\rm gw}$: gw-eccentricity')
plt.plot(obj.time_xi, obj.ecc_xi, label='$e_{\\xi}$: gwModels')
plt.legend()
plt.xlabel('Time')
plt.ylabel('Eccentricity')
plt.tight_layout()
plt.show()

4. Diagnostic plots of all modulation parameters, fits and gwModels eccentricity

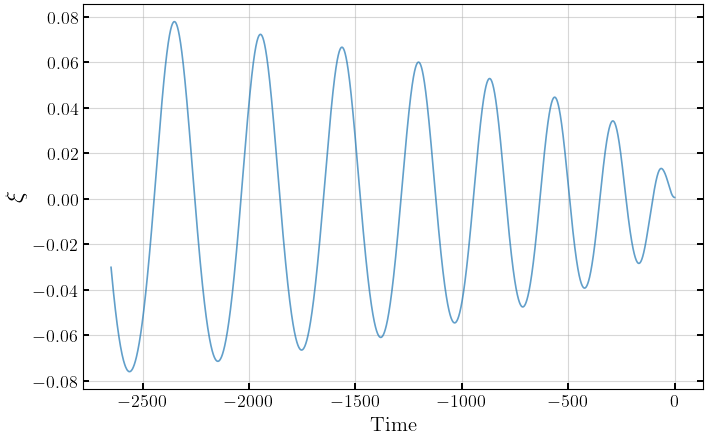

# plot the amplitude modulation obtained from the 22 mode
obj.plot_xi()

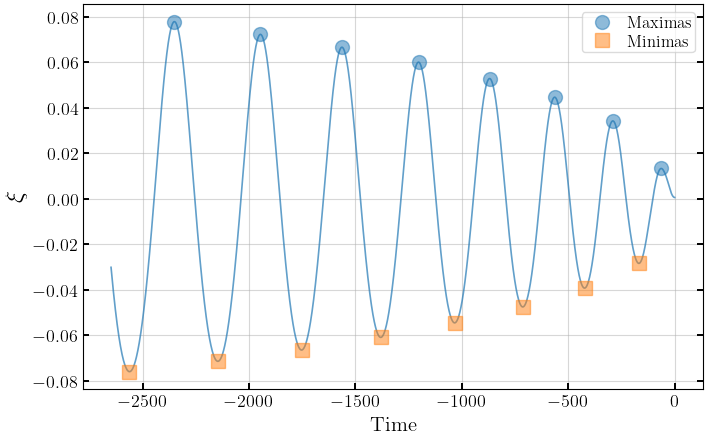

# find the peak of the modulation time series
obj.plot_xi_with_peaks()

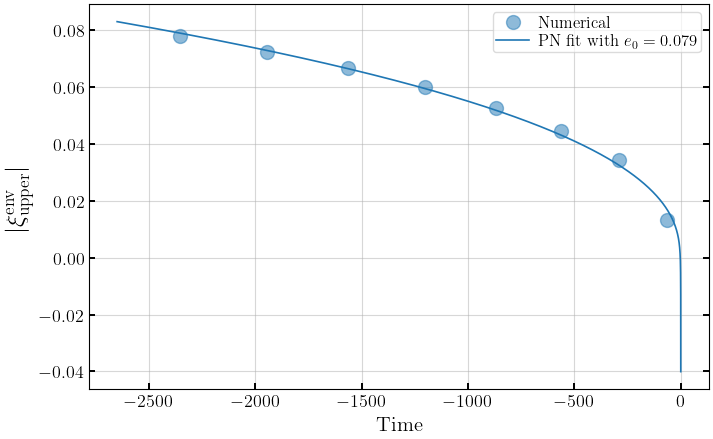

# fit maximas in the modulation time series
# this gives the upper envelop of the modulation xi
obj.plot_maximas_fit()

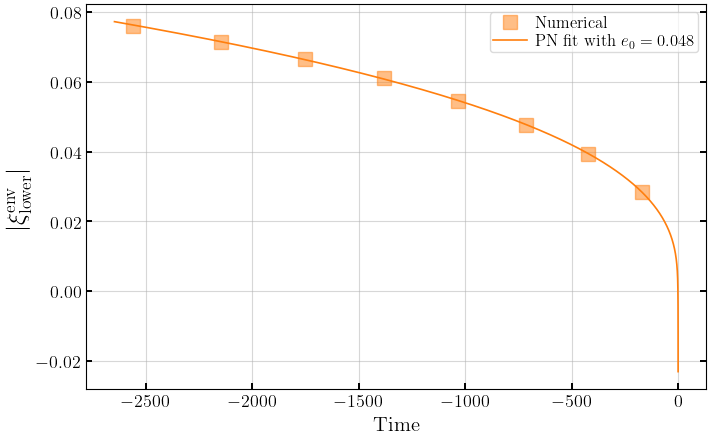

# fit absolute value of the minimas in the modulation time series
# this gives the lower envelop of the modulation xi
obj.plot_minimas_fit()

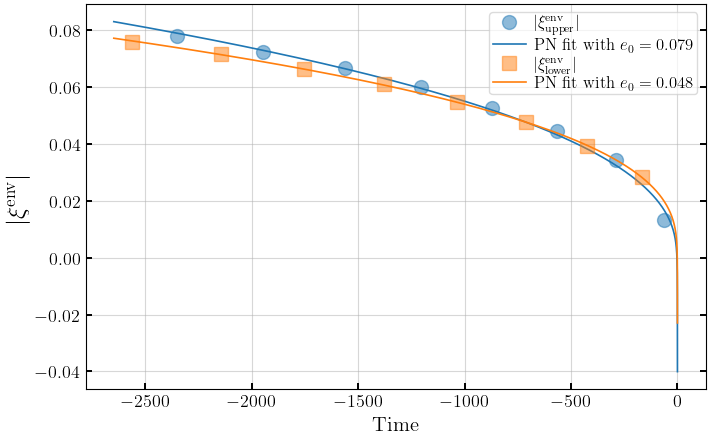

# show both upper and lower envelop fits together
obj.plot_maximas_and_minimas_fit()

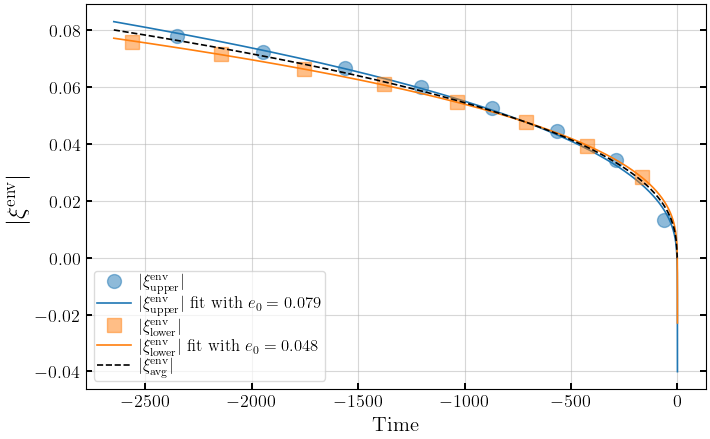

# obtain average envelop for the modulation params
obj.plot_maximas_minimas_and_avg_fit()

# obtain eccentricity from the average envelop of the modulation params and ecc pre-factor=2/3
obj.plot_eccentricity()

5. Calculate smooth \(e_{\rm gw}\) and \(e_{\omega}\) directly from gwModels using \(e_{\xi}\) envelops

# eomega22 and egw
eobj = gwModels.ecc_measures.ComputeEccentricityFromOmega(time_xi=obj.time_xi,
                                                          xi_lower=obj.xi_lower,
                                                          xi_upper=obj.xi_upper,
                                                          gwnrhme_obj=obj.gwnrhme_obj,
                                                          ecc_prefactor=obj.ecc_prefactor,
                                                          t_ref=obj.t_ref)

... gwModels ecc_omega_22 at t_ref=-2638.56 : 0.05993
... gwModels ecc_gw at t_ref=-2638.56 : 0.07979

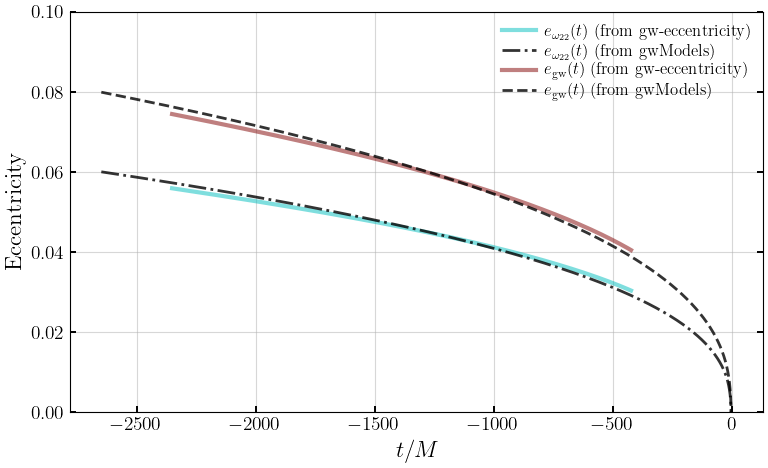

plt.figure(figsize=(8,5))
plt.plot(gwecc_object.t_for_checks, gwecc_object.e_omega_gw, c='c', ls='-', alpha=0.5,
         label='$e_{\\omega_{22}}(t)$ (from gw-eccentricity)', lw=3)
plt.plot(obj.time_xi, eobj.ecc_omega22, c='k', alpha=0.8, lw=2, ls='-.', label='$e_{\\omega_{22}}(t)$ (from gwModels)')
plt.plot(gwecc_object.t_for_checks, gwecc_object.ecc_for_checks, c='maroon', alpha=0.5,
         label='$e_{\\rm gw}(t)$ (from gw-eccentricity)', lw=3)
plt.plot(obj.time_xi, eobj.ecc_gw, c='k', alpha=0.8, lw=2, ls='--', label='$e_{\\rm gw}(t)$ (from gwModels)')
plt.xlabel('$t/M$')
plt.ylabel('$\\rm Eccentricity$')
plt.ylim(0.00,0.1)
plt.legend(frameon=False)
plt.tight_layout()
plt.show()

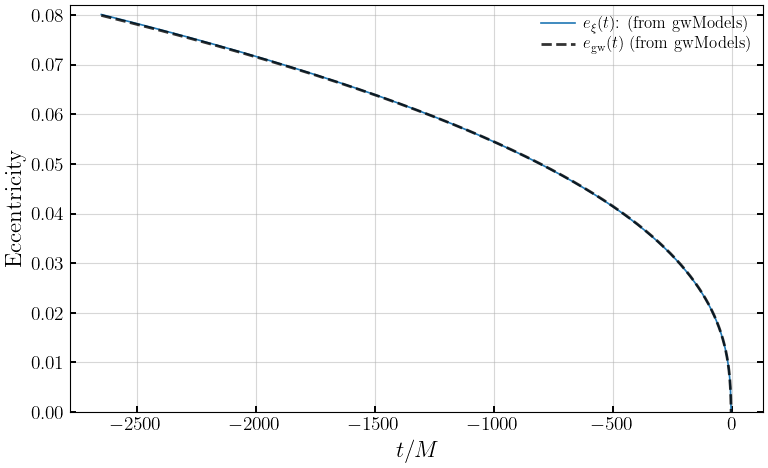

plt.figure(figsize=(8,5))
plt.plot(obj.time_xi, obj.ecc_xi, label='$e_{\\xi}(t)$: (from gwModels)')
plt.plot(obj.time_xi, eobj.ecc_gw, c='k', alpha=0.8, lw=2, ls='--', label='$e_{\\rm gw}(t)$ (from gwModels)')
plt.xlabel('$t/M$')
plt.ylabel('$\\rm Eccentricity$')
plt.ylim(0.00,0.082)
plt.legend(frameon=False)
plt.tight_layout()
plt.show()
